Isotherm Compact Classic 2007 | 100L Air-Cooled Fridge/Freezer Kitset
Isotherm Compact Classic 2007 | 100L Air-Cooled Fridge/Freezer Kitset is backordered and will ship as soon as it is back in stock.
The Isotherm Compact Classic 2007 is a versatile refrigeration system designed for boats, caravans, and tiny off-grid spaces. This air-cooled unit efficiently cools insulated compartments up to 100 litres as a fridge. It's the perfect solution for converting an existing ice box or creating a custom refrigeration space.

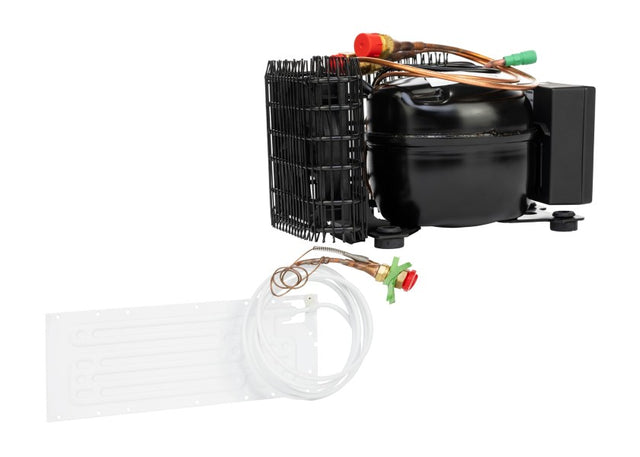

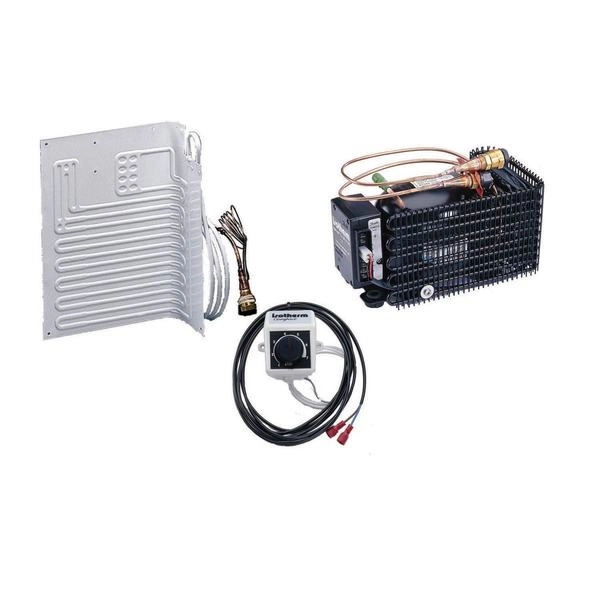

Designed for DIY installation, the system comes in two parts – a compact compressor/condenser unit and a Small-L evaporator. These connect via a 2.5 metre pre-charged pipe with quick-connect couplings, making setup simple with minimal refrigerant loss.
Key Features:
- Cooling capacity: Up to 100L as a fridge
- Evaporator type: Small-L shape – can be flexed to fit
- Air-cooled Danfoss BD35F compressor for quiet, energy-efficient operation
-
12/24V DC compatible – ideal for marine and off-grid setups
Optional upgrades for 115/230v
- Quick-connect installation – no special tools or re-gassing needed
- Thermostat control box – adjustable and mountable inside or outside the fridge
- Mounting bracket included for easy fitting
- Evaporator dimensions (mm): 250W x 110H x 350D
- Compressor dimensions (mm): 280W x 160H x 175D
- Weight: Approx. 9kg
- Average power use: 0.6A/hr @ 12V
- Maximum power draw: 2.5A hr @ 12V
- Refrigerant: R134a (ozone-friendly)
- Compressor: Danfoss BD35F
- U100X000L11111AA
- (ALL PLATES CAN BE FOLDED TO FIT SHAPE OF BOX)
Installation Notes:
- Best installed in a well-insulated compartment (minimum 50mm insulation recommended)
- Ensure the compressor has good airflow – cool air should enter from below and warm air must be able to escape
- Top-opening boxes retain cold better and reduce strain on the system
- Door seals must be tight to prevent icing on the evaporator
The Isotherm Compact Classic 2007 offers a reliable, quiet, and space-saving solution for custom refrigeration needs on the water or the road. Built to perform and easy to install – a trusted choice from Isotherm.
