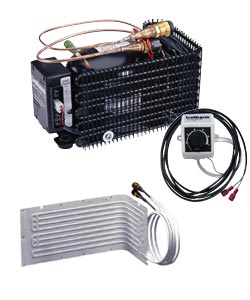

Isotherm Compact Classic 2010 – 125L Air-Cooled Refrigeration Kitset

The Isotherm Compact Classic 2010 is an efficient and versatile refrigeration solution, ideal for marine and mobile applications. Designed to cool insulated compartments up to 125 litres as a refrigerator, this system is perfect for custom installations in boats, caravans, or off-grid setups.

Key Features:

• L-Shaped Evaporator: The system includes a large L-shaped evaporator measuring 400mm x 170mm x 210mm, providing flexible installation options and efficient cooling performance.
• Danfoss BD35F Compressor: Equipped with the reliable and quiet Danfoss BD35F compressor, known for its energy efficiency and durability.
• Air-Cooled System: Utilises a fan to blow air through the condenser, effectively removing heat. Proper ventilation is essential, allowing cool air to enter from below and hot air to escape from the top.
• 12/24V DC Compatibility: Designed to operate seamlessly with 12V or 24V DC power systems, making it suitable for various marine and mobile power setups.
• Quick-Connect Installation: Features 2.5 meters of pre-charged piping with quick-connect couplings, simplifying the installation process and allowing for easy maintenance without significant refrigerant loss.
• Thermostat Control: Comes with a mechanical thermostat, allowing precise temperature adjustments to suit your cooling needs.
• Specifications:
• Cooling Capacity: Up to 125L as a refrigerator.
• Evaporator Dimensions: 400mm (W) x 170mm (H) x 210mm (D).
• Compressor Dimensions: 280mm (W) x 160mm (H) x 175mm (D).
• Power Consumption: Average of 0.7 A/h at 12V; maximum of 4.0 A at 12V.
• Weight: Approximately 9 kg.
• Refrigerant: R134a, an ozone-friendly refrigerant.
• DIY
• 12/24 volt or Optional upgrades for 115/230v
• U125X000L11111AA
• (ALL PLATES CAN BE FOLDED TO FIT SHAPE OF BOX)
• Installation Recommendations:
• Ventilation: Ensure the compressor compartment is well-ventilated, allowing cool air to enter from below and hot air to escape from the top, optimising the air-cooled system's efficiency.
• Insulation: For optimal performance, install the system in a well-insulated compartment to maintain desired temperatures and reduce energy consumption.
• Mounting: Utilise the included mounting bracket with a click-on lock for secure and straightforward installation.

The Isotherm Compact Classic 2010 offers a reliable and adaptable refrigeration solution, perfect for various applications where space and efficiency are critical.
