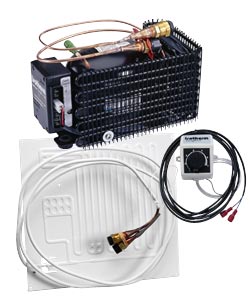

Isotherm Compact Classic GE150 Refrigeration/Freezer Kitset

Isotherm Compact Classic GE150 Fridge/Freezer - 150L/50L

The Isotherm Compact Classic GE150 Fridge/Freezer provides the perfect refrigeration solution for boats and RVs. Designed with easy DIY installation in mind, this system fits seamlessly into any well-insulated ice box, whether new or pre-existing.

The unit features a Danfoss BD35F Air cooled compressor, known for its ultra-quiet operation. For maximum space efficiency, the compressor can be conveniently located in a locker, wardrobe, or even under a berth with adequate ventilation. The cooling system uses a flat evaporator plate placed inside the fridge or freezer compartment and is regulated by a thermostat to maintain consistent temperatures. Air is used to expel heat, making the system both efficient and reliable.

To simplify the setup process, the system is divided into two main components: the compressor/condenser unit and the evaporator. These are connected by 2.5-meter of soft Refrigeration tube with quick-coupling fittings, allowing for easy installation and disconnection with minimal refrigerant loss.

Key Features:

• Volume:  up to150L (Fridge)
• Voltage: 12/24V DC
• Evaporator Type: Flat
• Compressor Type: Danfoss BD35F
• Power Draw MAX: 4 amp hr @ 12vdc
• Power consumption: operating as a fridge around .7 amp hr @ 12vdc

Dimensions:

• Compressor: 270mm x 160mm x 155mm
• Evaporator: 386mm x 361mm
• Thermostat Control Box: Can be mounted inside or outside the fridge
