Slim Waterheater Range

Slim Waterheater Range

Regular price
$1,250.00
Sale price
$1,250.00
Unit price
per
Tax included.

Water Heaters Slim

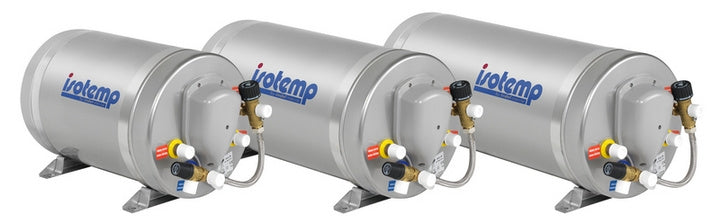

The Isotemp water heater comes with brushed stainless steel cover as well as innovative internal design. It achieves highest capacity by optimized installation of the engine water heat exchanger as well as the immersion heater.
  • Extra long, corrugated coils for high heat exchange efficiency
  • Special 7.0 bar / 100 psi safety valve
  • Simple winter drain
  • Ultra-thick insulation for lowest temperature loss
  • Electrical plug, immersion heating element, especially designed to heat water at the bottom of the tank
  • Thermostat mixing valve
  • Immersion heating element available in 750W
  • 115 volt/750 watt by request
  • Robust design
  • Water tank in stainless steel
  • External cylinder in stainless steel
  • Stable fixing feet in stainless steel
  • 360 ° adjustable mounting for easy
  • installation also on bulkhead



Dimensional Drawing



Slim 15

Slim 20

Slim 25

Article number
601531S000003
602031S000003
602531S000003
Volume (l)
15
20
25
Dimensions L x ø D* (mm)
520 x 295
645 x 295
765 x 295
Weight (kg)
9
10,5
12

* Including thermostat mixing valve
