Isotherm Compact Classic 2013 400L Refrigeration Kitset

The Isotherm Compact Classic 2013 is a high-capacity, air-cooled refrigeration kit designed for larger spaces—ideal for boats, campervans, and off-grid setups where performance and reliability are paramount.

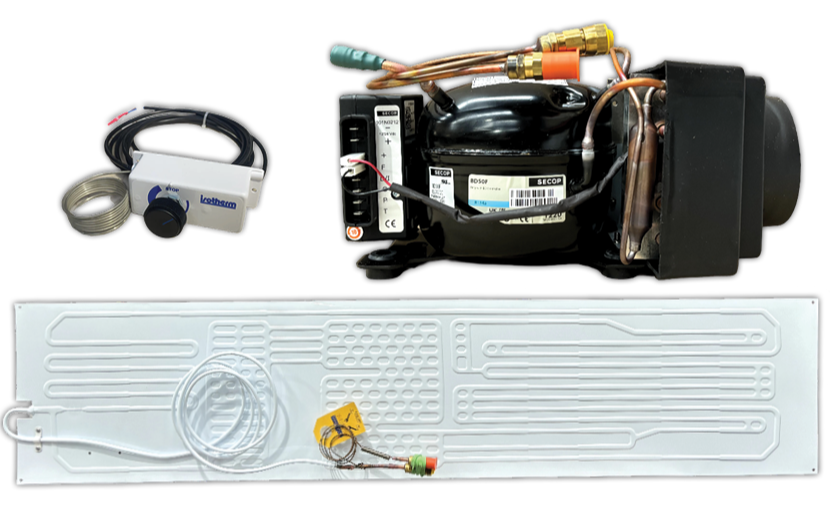

This 12/24V system features the robust Secop BD50F compressor, paired with an extra-large flat evaporator that can be gently shaped to fit your box layout. It's capable of refrigerating spaces up to 400 litres or freezing up to 133 litres, making it perfect for converting existing insulated boxes or building new fridge/freezer compartments.

Installation is straightforward with quick-connect couplings and a 2.5-metre flexible pipe—no refrigerant handling required.The compressor includes a built-in ventilation fan, ensuring efficient heat dispersion.

---

Key Features

• DIY-Friendly: Quick-connect system allows for easy installation and maintenance.
• 12/24V DC Operation: Designed for off-grid and marine applications.
• Flexible Evaporator: Extra-large flat evaporator can be gently shaped to fit your box layout.
• Integrated Fan: Air-cooled system with built-in fan for efficient heat dispersion.
• Mechanical Thermostat: Includes an ON/OFF switch for easy temperature control.

---

Specifications

• Voltage: 12/24V DC
• Max. Fridge Capacity: 400 litres
• Max. Freezer Capacity: 133 litres
• Compressor Type: Secop BD50F
• Power Draw MAX: 7 amp hr @ 12vdc
• Power consumption: operating as a fridge around 1.2 amp hr @ 12vdc
• Compressor Dimensions (L x W x H): 330 x 160 x 175 mm
• Evaporator Dimensions (L x W): 1370 x 300 mm
• Weight: Approximately 12 kg
• Cooling Method: Air-cooled
• Refrigerant: R134a – ozone friendly

---

Whether you're upgrading your current setup or installing from scratch, the Isotherm Compact Classic 2013 offers reliable cooling in a user-friendly package—perfect for your next adventure.

Evaporator plates can be folded to size.



Part Code: U400X133P12111AA
